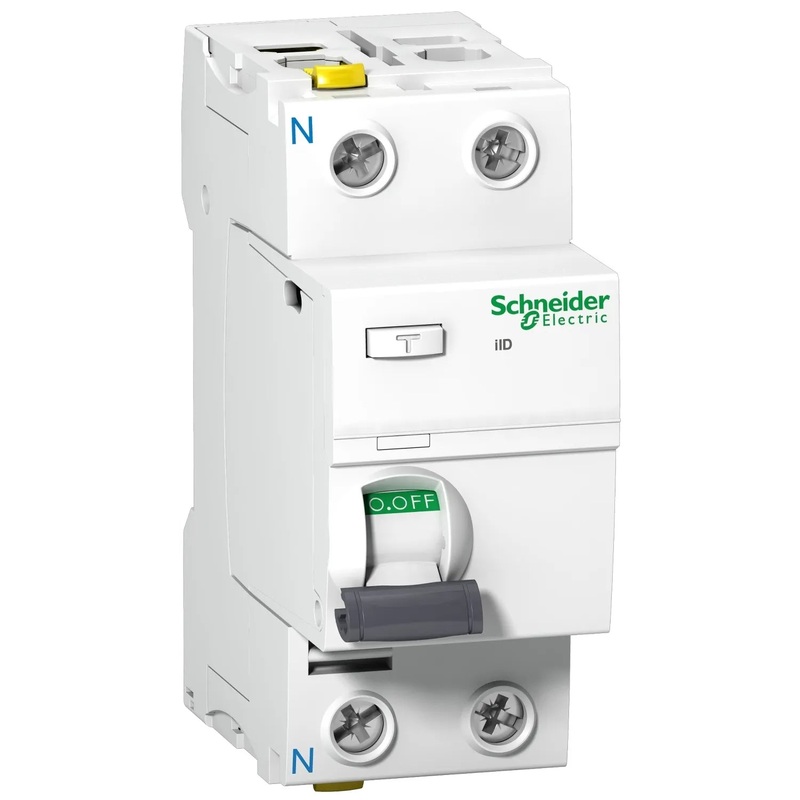

Residual Current Circuit Breaker RCCB 2P 63A

Reliable RCCB with 63A current rating, providing safety and efficiency. The Residual Current Circuit Breaker (RCCB) Acti9 iID by Schneider Electric is a modular and reliable double terminal device designed for safety and efficiency. It features a 2-pole design with a rated current of 63A and A-SI type protection class, suitable for 30mA earth leakage sensitivity. This RCCB safeguards against electrical shock from direct or indirect contact and mitigates fire hazards. Its Visitrip indicator allows for quick identification of faults, reducing intervention time, while the VisiSafe window ensures safe downstream maintenance by indicating full pole disconnection. Compliant with EN/IEC 61008-1 standards, this device offers a rated breaking and making short circuit capacity of 1500A and a conditional rated short circuit current of 10kA. With an electrical endurance of up to 15,000 cycles and mechanical endurance of up to 20,000 cycles, it operates efficiently under operational voltages of 220VAC to 240VAC.

Key Features

• 63A rated current with A-SI type protection
• 30mA earth leakage sensitivity
• Visitrip indicator for fault identification
• VisiSafe window for maintenance safety
• Compliant with EN/IEC 61008-1 standards

Technical Specifications
