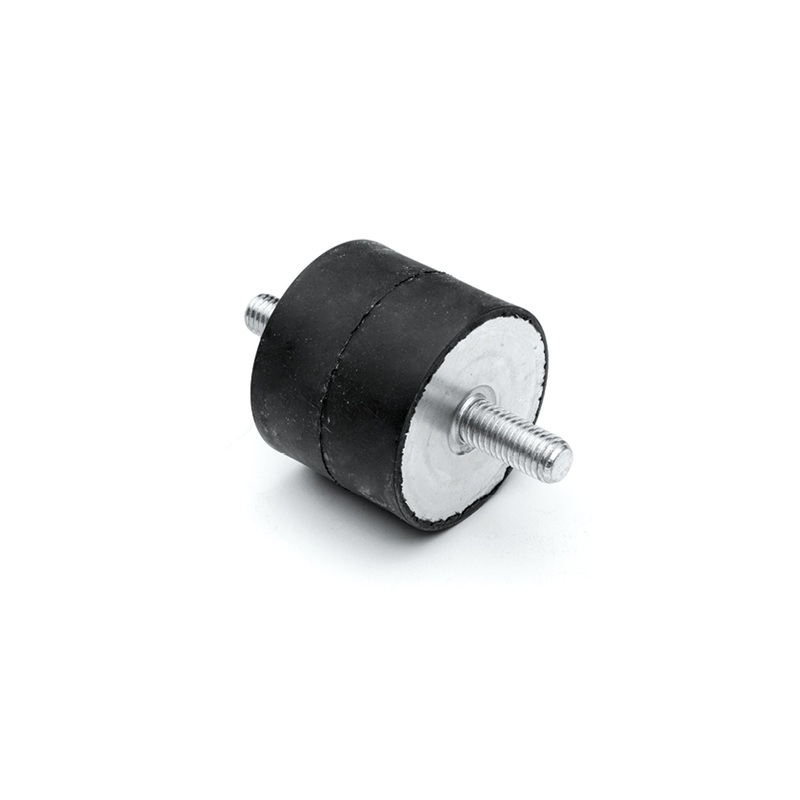

Sale! Cylindrical anti-vibration Threaded zinc plated steel pin. Zinc plated steel bushing and threaded blind hole. Material Black natural rubber, hardness 605 Shore A. Cylindrical anti-vibration mount with pin and blind hole 50mm to 60mm - Model ACMF Specificat
Unconditional Satisfaction GuaranteeNo Shipping Fees Above 302 Months to Decide. Returns Simplified.Threaded zinc plated steel pin. Zinc plated steel bushing and threaded blind hole.
Material Black natural rubber, hardness 605 Shore A.
| Cylindrical anti-vibration mount with pin and blind hole 50mm to 60mm – Model ACMF |
|---|
| Code | Model | In mm | C mm | D | The mm | And mm | Static compression load (Kg) | Static Shear Load (Kg) |
|---|---|---|---|---|---|---|---|---|
| 7330730 | ACMF/50×20 M10x23/25 | 50 | 20 | M10 | 23/25 | 10 | 154 | 18 |
| 7330732 | ACMF/50×25 M10x25 | 50 | 25 | M10 | 25 | 10 | 154 | 18 |
| 7330735 | ACMF/50×30 M10x23/28 | 50 | 30 | M10 | 23/28 | 10 | 160 | 20 |
| 7330736 | ACMF/50×30 M10x28 | 50 | 30 | M10 | 28 | 10 | 160 | 20 |
| 7330737 | ACMF/50×35 M10x28 | 50 | 35 | M10 | 28 | 10 | 160 | 20 |
| 7330740 | ACMF/50×40 M10x23/28 | 50 | 40 | M10 | 23/28 | 10 | 153 | 18 |
| 7330741 | ACMF/50×40 M10x28 | 50 | 40 | M10 | 28 | 10 | 153 | 18 |
| 7330745 | ACMF/50×45 M10x23/28 | 50 | 45 | M10 | 23/28 | 10 | 146 | 16 |
| 7330746 | ACMF/50×45 M10x28 | 50 | 45 | M10 | 28 | 10 | 146 | 16 |
| 7330750 | ACMF/50×50 M10x23/25 | 50 | 50 | M10 | 23/25 | 10 | 135 | 14 |
Cost - $25
