Sale! Cylindrical anti-vibration Zinc plated steel socket and threaded blind hole Material: Black natural rubber, hardness 605 Shore A. Cylindrical anti-vibration mount with blind hole 75mm to 100mm - Model ACFF Specifications Code Model In mm C mm D And mm Stat
Unconditional Satisfaction GuaranteeNo Shipping Fees Above 302 Months to Decide. Returns Simplified.Zinc plated steel socket and threaded blind hole
Material: Black natural rubber, hardness 605 Shore A.

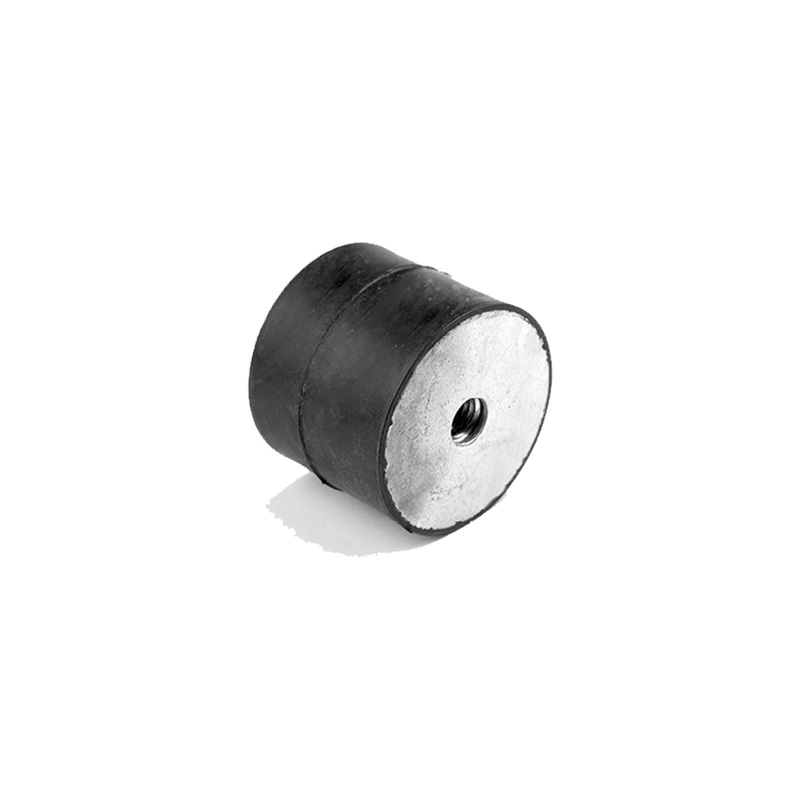

| Cylindrical anti-vibration mount with blind hole 75mm to 100mm – Model ACFF |
|---|
| Code | Model | In mm | C mm | D | And mm | Static compression load (Kg) | Static Shear Load (Kg) |
|---|---|---|---|---|---|---|---|
| 7330480 | ACFF/75×25 M12 | 75 | 25 | M12 | 12 | 285 | 60 |
| 7330485 | ACFF/75×30 M12 | 75 | 30 | M12 | 12 | 285 | 60 |
| 7330490 | ACFF/75×35 M12 | 75 | 35 | M12 | 12 | 280 | 50 |
| 7330495 | ACFF/75×40 M12 | 75 | 40 | M12 | 12 | 280 | 50 |
| 7330500 | ACFF/75×50 M12 | 75 | 50 | M12 | 12 | 275 | 50 |
| 7330505 | ACFF/75×55 M12 | 75 | 55 | M12 | 12 | 270 | 48 |
| 7330510 | ACFF/75×60 M12 | 75 | 60 | M12 | 12 | 260 | 45 |
| 7330515 | ACFF/100×40 M16 | 100 | 40 | M16 | 16 | 775 | 110 |
| 7330520 | ACFF/100×50 M16 | 100 | 50 | M16 | 16 | 770 | 100 |
| 7330525 | ACFF/100×55 M16 | 100 | 55 | M16 | 16 | 740 | 100 |
| 7330530 | ACFF/100×60 M16 | 100 | 60 | M16 | 16 | 710 | 95 |
Cost - $25
